All Armattan warranty claims must be handled directly through Armattan. Please follow this link with instructions on how to file for a warranty claim.

Check out the rest of our , as well as the rest of our selection!

Specifications

• Frame Weight: 45g

• Motor to Motor: 174mm

• Frame Shape: Compressed-X

• left & Right: 137mm

• front & rear: 107mm

• Main Plate Thickness: 3mm

• Motor Mount Pattern: 14XX motor pattern

• Front Stack Mount: M2, 20x20mm (for HD cam board)

• Rear Stack Mount: M3 20x20mm (for FC stack)

• FPV Camera Mount: Micro compatible

• Max Stack Height: 22mm
• Motor Mounting: 12x12mm

Includes

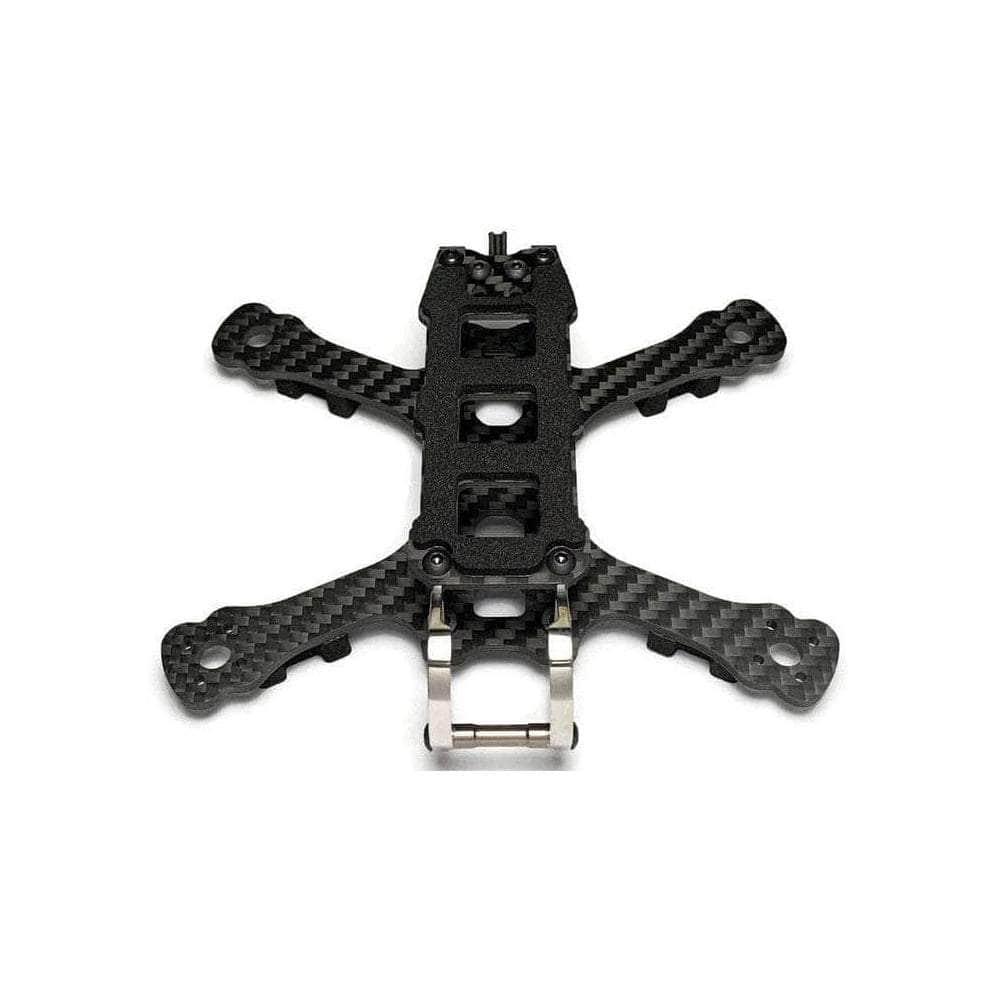

• 1x Armattan Gecko HD 4" Frame Kit

• 2x Camera-cage braces

• 8x 6mm button-head M3 bolts

• 4x 4mm button-head M3 bolts

• 4x 16mm buton-head M3 bolts

• 2x 5mm cup-head M2 bolts

• 2x M3 sunk nuts

• 2x Camera-saver braces

• 1x 19.1mm Front standoff (silver)

• 2x Rear standoffs (black)

• 4x M3 nuts

• 2x Washers

• 1x 2mm Top (LiPo) plate

• 1x 3mm Main plate (4 inch)

• 1x Lipo strap

• 1x LiPo foam pad

• 4x Dog-bone landing pads

• 1x Molded rubber VTx antenna holder
