Dive into the world of powerful Cinewhoop flying with the versatile 1404 brushless motor series. Perfectly suitable for 95mm Cinewhoops, these motors offer exceptional performance, efficiency, and durability. Whether you're aiming for smooth cinematic shots or agile flights, the 1404 series has got you covered. Both 4500KV and 3800KV variants are ideal for building 2.5-4'' ultralight micro drones, especially when paired with the Toothpick F405 AIO 20A FC V4 or the 20A Toothpick F4 AIO FC.

Dave C FPV's Micro Long Range project underscores the capabilities of our 1404 motor series. Using BetaFPV 1404/1505 motors with 4025 props, Dave highlights the efficient power system suitable for sub-250g drones. More details can be found in the Thingiverse article.

Features

• Suitable for 95mm Cinewhoops, ensuring smooth and agile flights.
• Both 4500KV & 3800KV versions deliver powerful flight experiences.
• The 3800KV motor boasts a sleek black color and dart bell design.
• Motors are equipped with extended cables for more mounting flexibility.
• Compatible with both Toothpick F405 AIO 20A FC V4 and 20A Toothpick F4 AIO FC.
• 1404 motors maintain the φ1.5mm shaft design for optimal prop compatibility.

Specifications

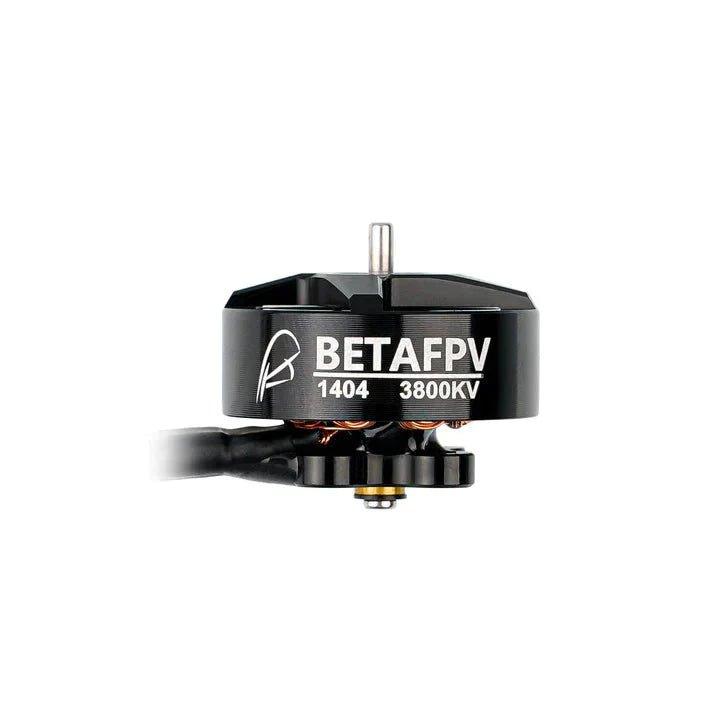

3800KV

• Weight: 9.66g (1 pcs)
• Shaft: φ1.5mm
• Motor Mount Holes: M2
• KV (rpm/V): 3800KV
• Input Voltage: 3-4S LIPO
• Cables: 80mm long, 24AWG

4500KV

• Weight: 8.49g (1 pcs)
• Shaft: 3mm length, 2mm diameter
• Motor Mount Holes: 4-M2EQS-φ9
• KV (rpm/V): 4500KV
• Input Voltage: 3-4S LIPO
• Cables: 40mm long, 28AWG

Includes

• 1 x 1404 3800 or 4500KV Brushless Motors
• 1 x Motor Clip
• 4 x M2 Screws
