As of December 13, 2023, AxisFlying has informed us of some new tweaks to this AIO.

1. The definition of the upper right corner of the forward direction of the flight control is changed from the BAT 5V G solder joint to the BAT G 5V solder joint (the reason for the change is to avoid the complete burnout of the AIO due to welding errors between the BAT and 5V paths)

2. The gaps between capacitors and other components in the flight control LED pad area are increased.

3. The manual in our AIO box has not been updated for now and will be updated soon, for now please refer to the New Updated Wiring Diagram

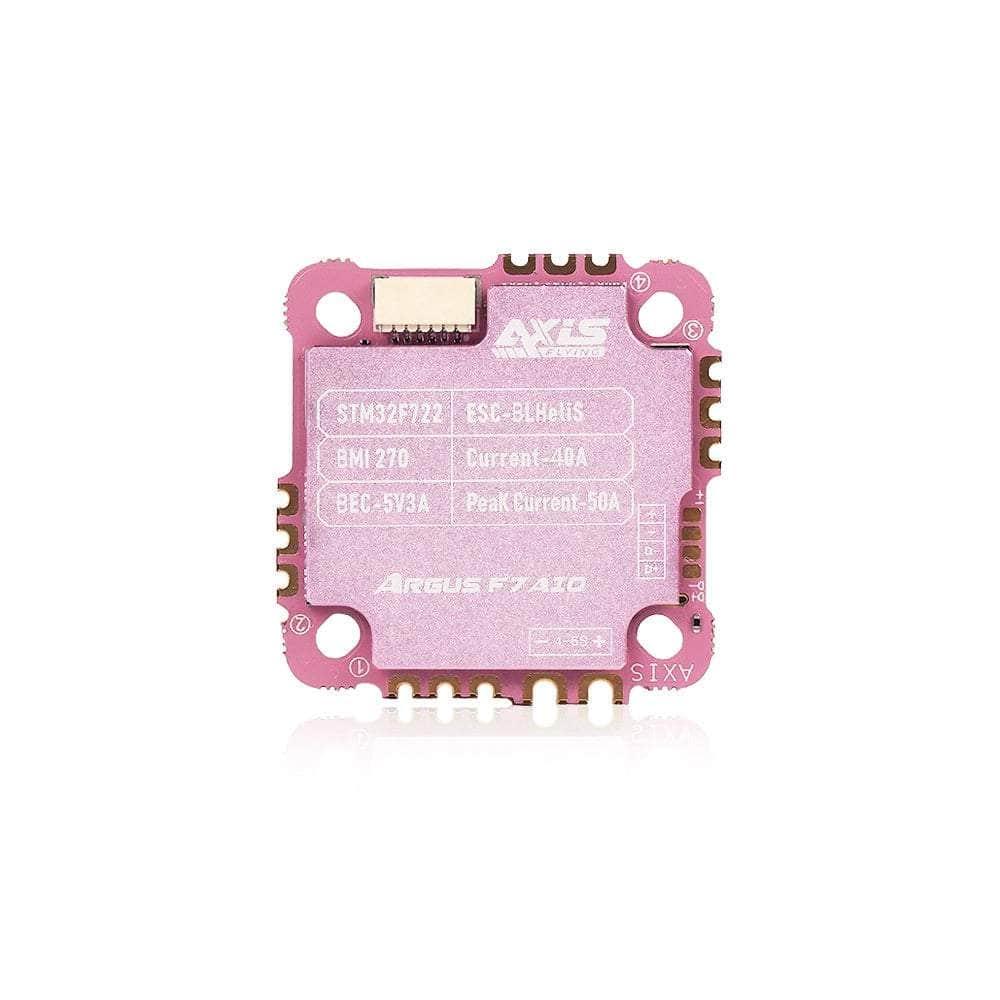

Experience the efficient and reliable AIO solution of the AxisFlying Argus F722 F7 for your Whoop/Toothpick builds, complete with 40A 8Bit 4in1 ESC and pink aluminum shell. CNC heat sink on both sides ensures better cooling and longer service life.

Browse the rest of our  and all our

Feature

• Every AIO goes through 800 full-throttle takeoff and landing tests before leaving the factory. High-quality circuit technology and aluminum shell casing will ensure their service life.
• Stylish CNC heat sink on both sides. Better cooling and increased lifespan.

• The big concern of every pilot - desyncs - will be solved by the Argus F7 AIO.

• Perfectly match with 20/21 motors.

• PNP HD VTX interface

Specifications

• FC target: AXIS ARGUS F7 AIO
• DJI O3 dedicated plug: Supported
• Barometer: Supported
• Beeper: Supported
• Sized: 36x36x7.2mm
• MCU: STM32F722RET6
• Gyro: BMI270
• Continuous Current: 40A

• Peak Current: 50A
• Uart: 5
• OSD: Supported
• LED: Supported
• Input Voltage: 4-6S
• Mounting: 25.5x25.5mm/26.5x26.5mm M3

 Includes

• 1x Axisflying Argus F722 F7 Whoop/Toothpick AIO Flight Controller w/ 40A 8Bit 4in1 ESC & Pink Aluminum Shell

Wiring Diagram (Updated Verison)
